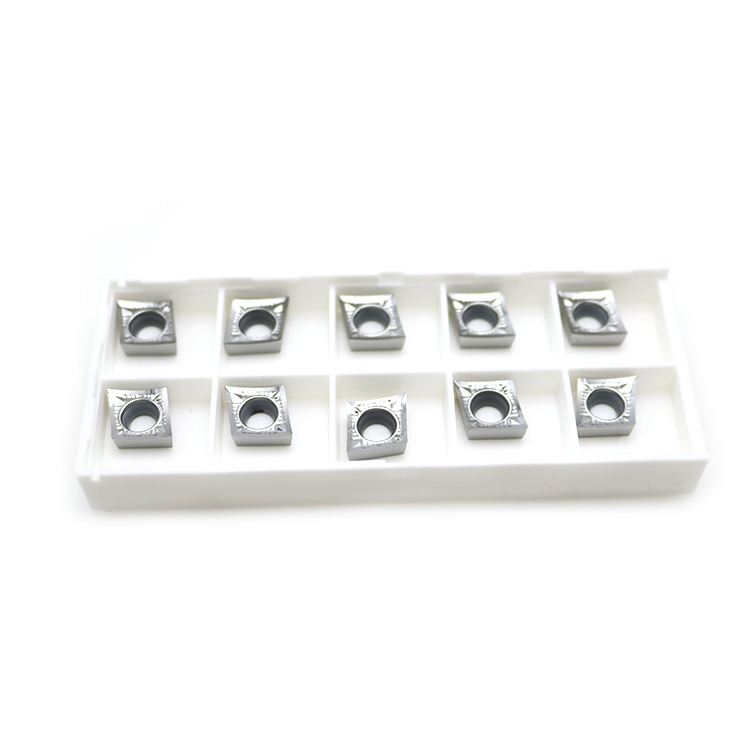

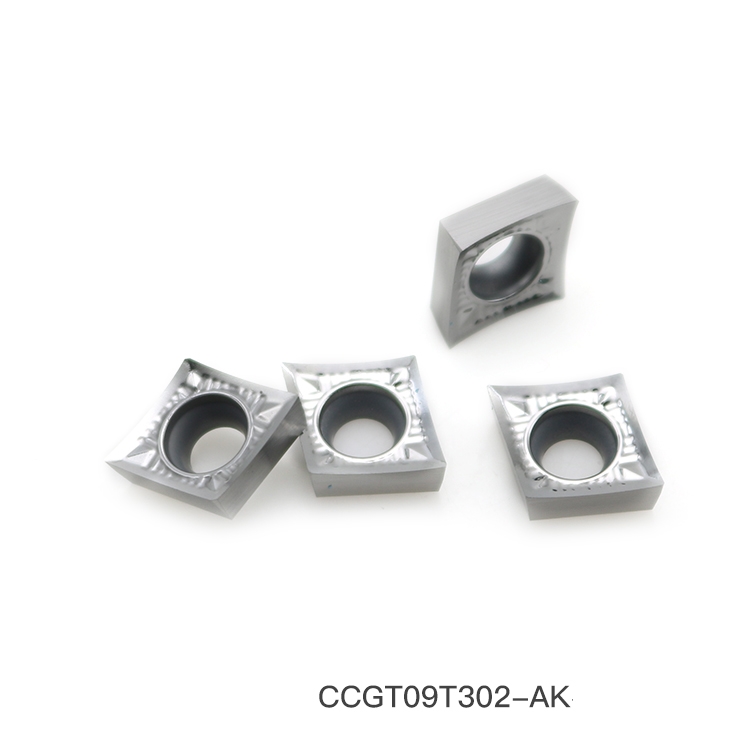

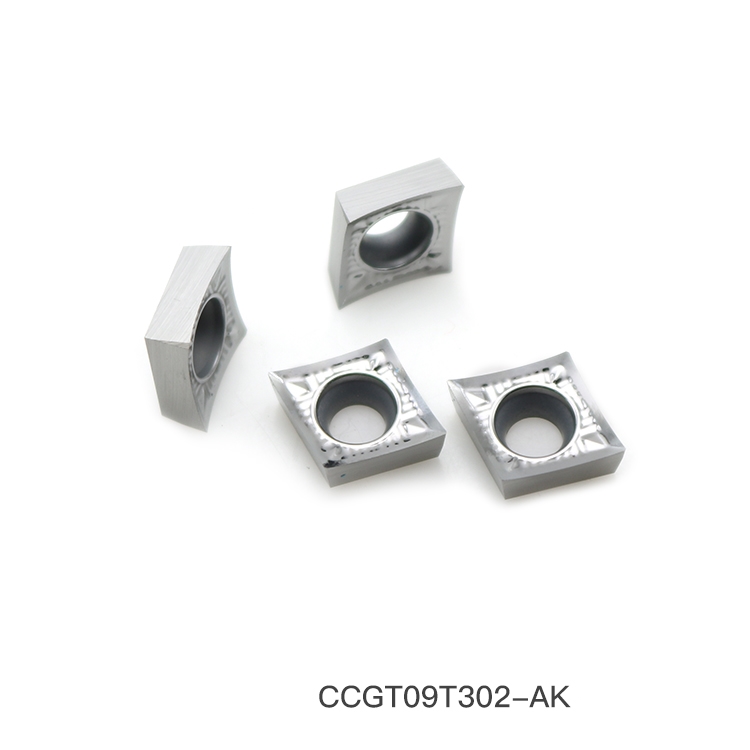

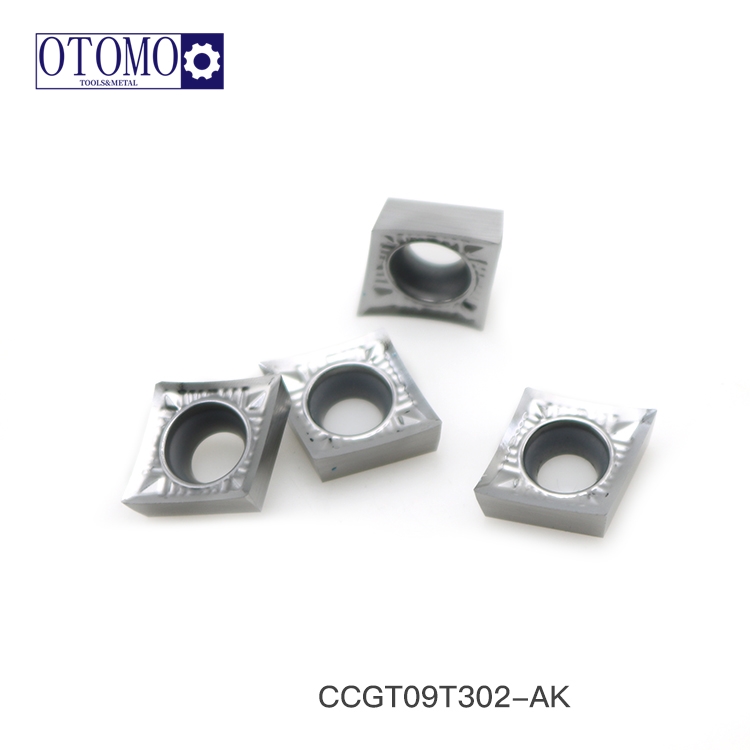

CCGT09T304/09T302/09T308-AK H01 Aluminum inserts inner hole boring inserts CNC turning inserts/replace Korloy

SHORT DESCRIPTION

CCGT09T304/09T302/09T308-AK H01 Aluminum inserts inner hole boring inserts CNC turning inserts/replace Korloy ...


description

1 CCGT09T304/09T302/09T308-AK H01 Aluminum inserts  inner hole boring inserts CNC turning inserts/replace Korloy




2 Grade

Grade No

Coating

Work Material

Features

H01

Polished

Aluminum and non-ferrous material

Untra-fine cemented carbide substrate(0.6um),with superior wear resistance and strength, excellent for aluminum and non-ferrouse material finishing.

3 Chip Breaker


Code

Work Material

Recommend cutting datas

Recommend Application

AK

for Aluminum and non ferrous material

ap:0.1-4.0  fn:0.1-0.5

AK with high rake angle and low resistance cutting types secures long tool life in continuous cutting of aluminum turing.


4 Specifications

undefined
